Devin Gold Vmax VDR Sluice Systems

Experience unmatched gold recovery with our patented sluice systems.

Mining Efficiency

Our VDR sluice systems offer high efficiency for all mining operations, ensuring maximum gold concentration and recovery for both weekend prospectors and large-scale mining projects.

Gold Concentration

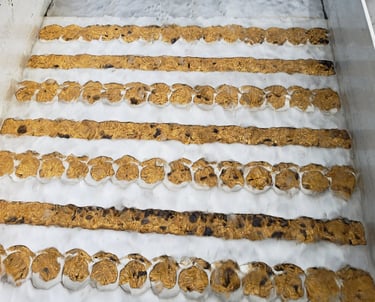

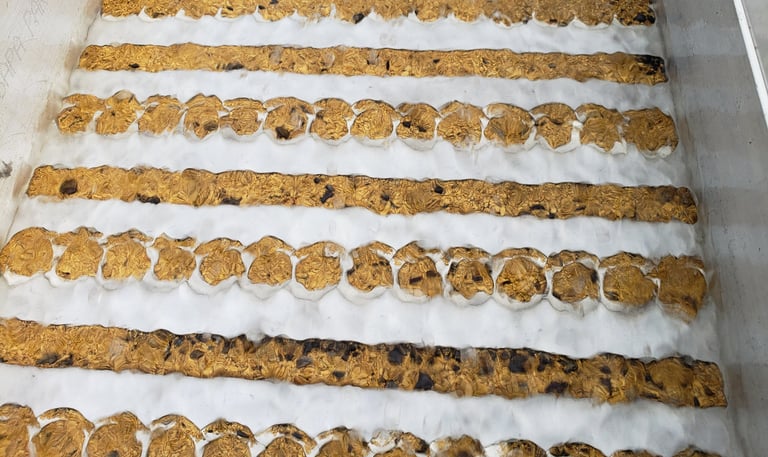

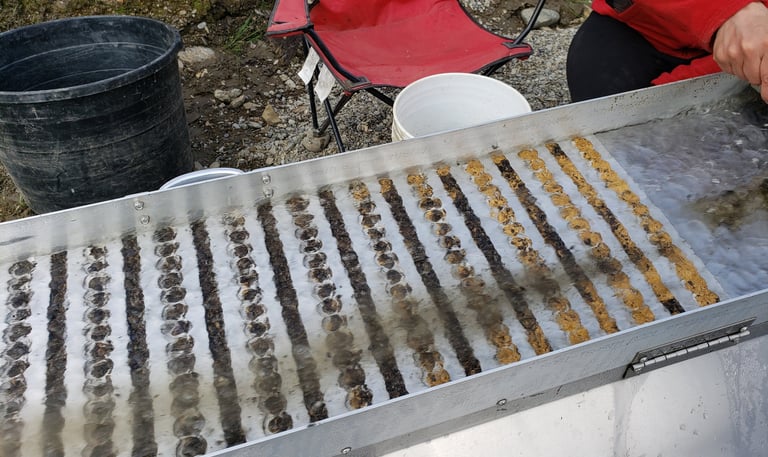

Devin Gold's vortex drop riffle systems excel in concentrating fine gold, achieving recovery rates up to 99.75%, making them ideal for various mining applications and ensuring optimal performance.

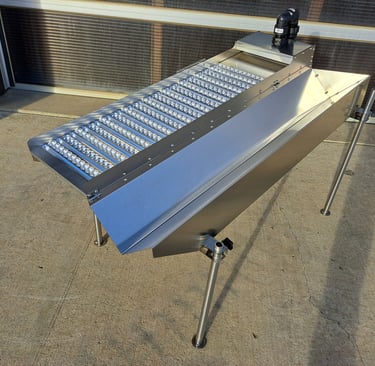

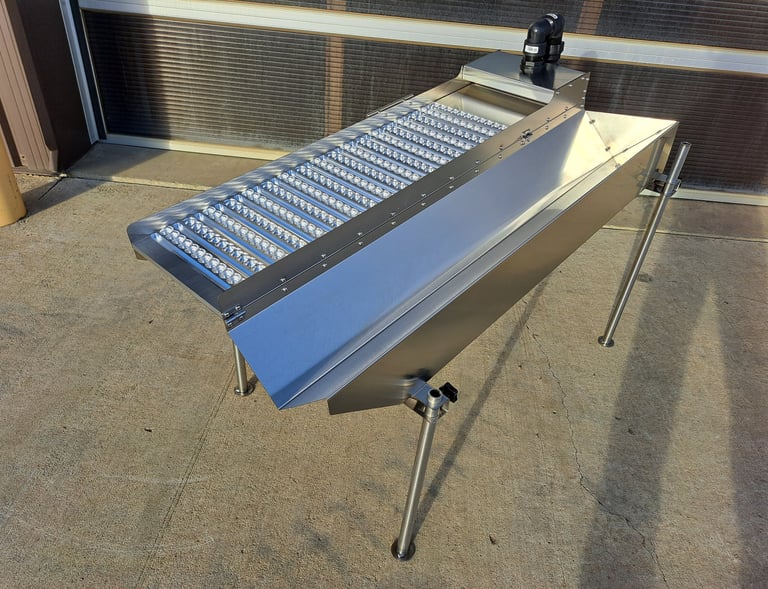

The Klondike series Vmax VDR is a 48 inch long side tip unit.These units have a 12inch wide × 48 inch long sluice featuring a ½ inch thick T6061 aluminum Vmax VDR plate measuring 11.375 inches wide by 35.75 inches long.Sheet metal is 20 and 16 gauge stainless steel. Water inlet is 1 ½ inch male camlock. The added benefits of the side tip design is it makes for a much easier and selective cleaning of the sluice plate. This allows you to take only the highly concentrated upper section of the sluice plate and wash it into the trough, further reducing the amount of unwanted materials to have to deal with. Field testing of these units in 2024 in the Yukon showed a recovery rate of 99.75 percent. These units can greatly reduce cleanup time while ensuring high recovery rates. Some assembly will be required on shipped orders.

Klondike Series

Variants available or soon to be; plates, open end sluice, closed end sluice, waterfall attachment, river sluice flare, highbanker attachment and sidetip

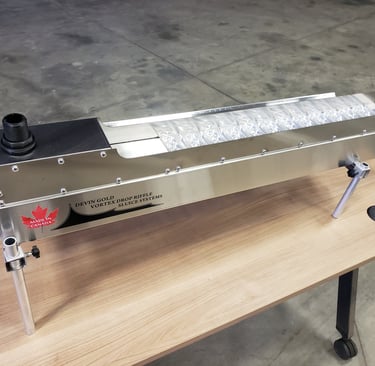

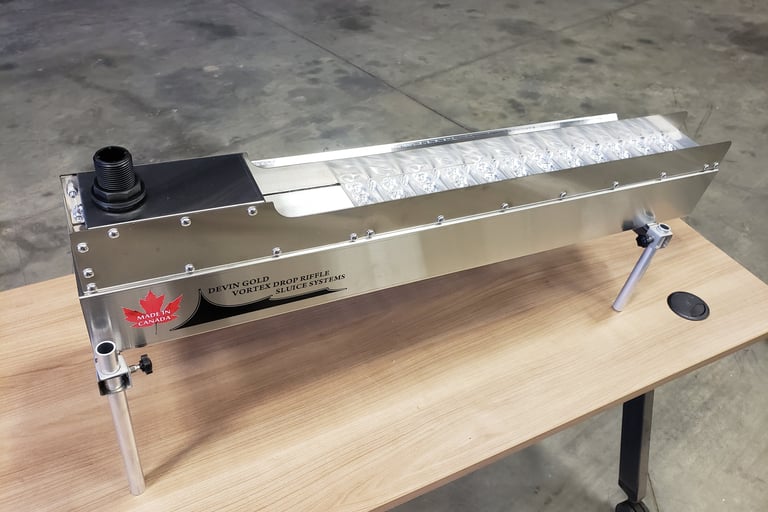

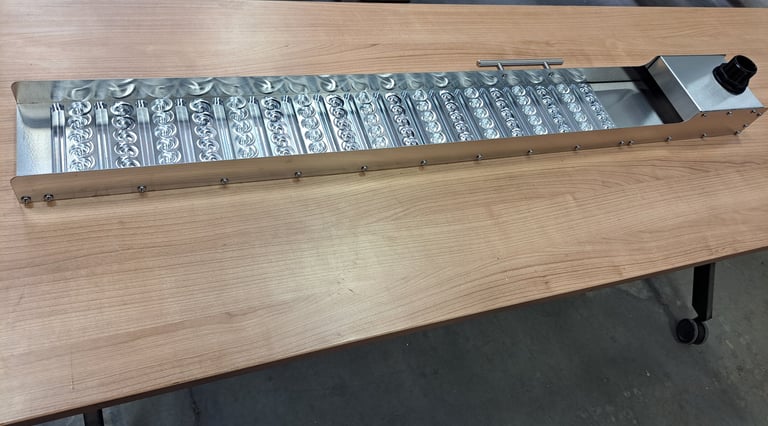

The Prospector Vmax VDR Sluice is 6 inches wide by 48 inches long complete with a waterfall attachment. It features a ½ inch thick by 5.375 inch wide x 35.75 long T6061 aluminum plate with the new Vmax design. Sheet metal is 20 gauge stainless steel and water inlet is 1 ½ inch male pipe thread.

Prospector Series

Variants available or soon to be; plates, open end sluice, closed end sluice, waterfall attachment, river sluice flare, highbanker attachment and sidetip

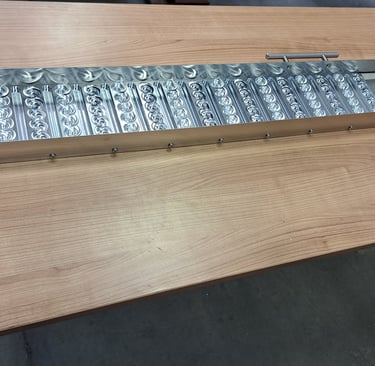

3.5 Vmax VDR Side tip sluice. This unit has a 3.5 inches wide by 36 inches long sluice, featuring a 3.5 inch wide x 24 inch long 1/2 inch thick T6061 aluminum Vmax VRD plate. Sheet metal is 16 and 20 gauge stainless steel and comes with a 1 inch male pipe thread water connection. These units are great for doing small clean-ups or bulk sampling or just taking to the creek for a fun time of prospecting. They are also great for further concentrating the concentrate from larger clean-up units ,further speeding up the clean-up process. The added benefits of the side tip design is makes for a much easier and selective cleaning of the sluice plate. This allows you to take only the highly concentrated upper section of the sluice plate and wash it into the trough, further reducing the amount of unwanted materials to have to deal with.

Mini Vmax VDR Series

Variants available or soon to be; plates, open end sluice, closed end sluice, waterfall attachment, river sluice flare, and sidetip

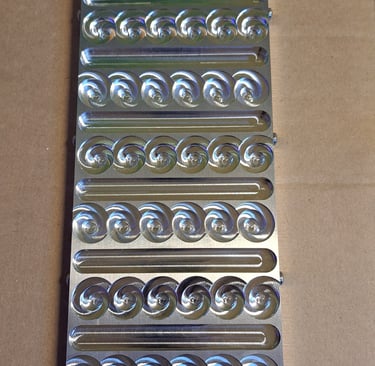

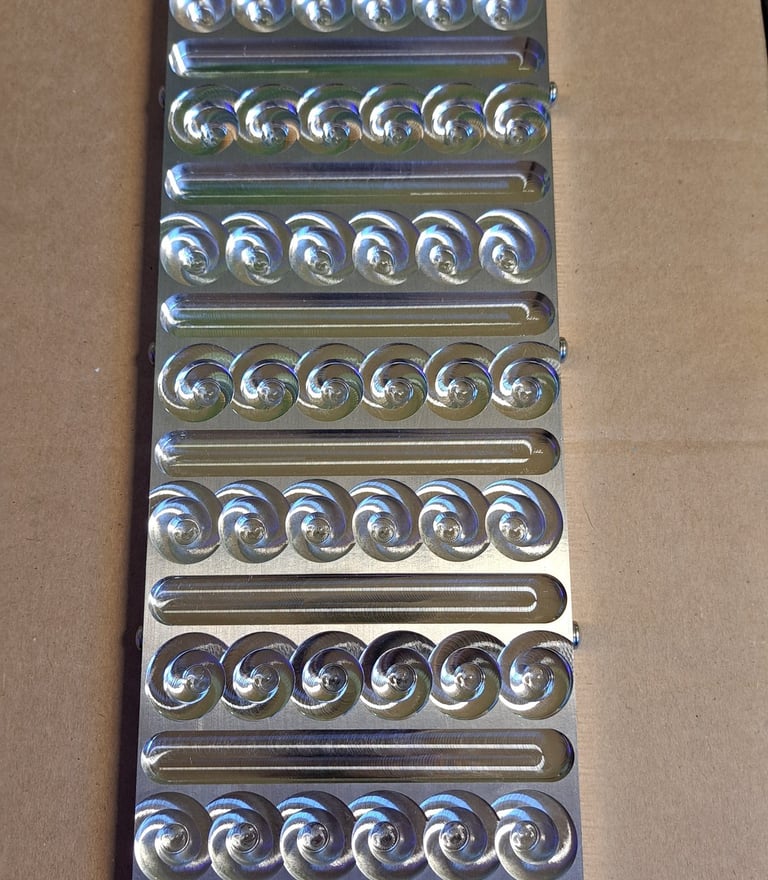

Vmax VDR Sluice Plates

These Aluminum plates are the same plates used in the SideTip units. Made from 1/2 inch thick T6 6061 Aluminum. Available in 6x36 ( Actual size 5.375 x 35.5 inches) and 12x36 ( Actual size 11.375 x35.5 inches). Plates are drilled and tapped 10-24 and come SS screws for attaching side rails.
